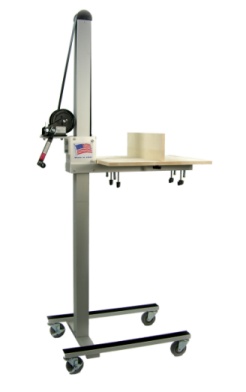

E-Z Cabinet Lift - 24" Model

DETAILED INFORMATION

The E-Z Cabinet Lift - 24" Model is a professionally engineered tool that is used to safely and efficiently install upper cabinets up to 24" deep. It can be operated with the winch handle (included) or a cordless drill. (not included)

It is three tools in one; for installing upper cabinets before or after bases and counter tops have been installed and as a dolly for moving cabinets from room to room. It has 6 modular components - base assembly, table top assembly, two main post assemblies and 2 padded counter top protection channels. The counter top protection channels are placed under the wheels to prevent the lift from moving and also to protect the counter top from damage. An extension tube is available for 9 or 10 foot high ceilings at a cost of $40.00. The table top is adjustable, using four leveler knobs at the bottom of the table top to plumb and level the cabinets. The footprint of the base is 21" wide x 24" deep. Assembly time is approximately 1 minute, with no tools needed.

The winch is state of the art with an automatic brake. If you accidentially release the winch handle or remove the cordless drill while raising or lowering cabinets the brake will engage, preventing the cabinets from falling to the floor.
Specifications
  • 250 lb. lifting capacity.
  • 4" polyurethane locking swivel casters
  • Lift height 75" from floor to bottom of TV
  • Weight of all components 50 lbs.
  • Shipping weight 57 lbs.
Features
  • Anodized aluminum parts
  • Solid maple cabinet support table
  • Hand or cordless drill operated
  • Complete - no extra parts to buy
  • Ships anywhere by UPS
E-Z Cabinet Life 24 inch Model
E-Z Cabinet Lift - 24 " Model
 Configured for installing cabinets
before base cabinets and counter
tops have been installed. 		E-Z Cabinet Life 12 inch Model
Counter Top Protection Channels




E-Z Cabinet Life 24 inch Model
E-Z Cabinet Lift - 24 " Model
 Configured for installing cabinets after
base cabinets and counter tops have been installed.
Shown with counter top protection channels.

A pair of temporary supports are needed when a run of upper cabinets are installed after bases and counter tops are in place. Each assembly uses a 23" long 2 x 6 for the base and a 23" long 2 x 8 for the top. They will look like an upside down "T" when assembled. The pictures on the right show the two assemblies. Temporary Supports
Temporary Supports
not included with lift
Install a row of Upper Cabinets prior to Lower Cabinets...
PLACE ASSEMBLED CABINETS IN FRONT OF WALL. TILT AND ROLL TOOL UNDER ASSEMBLY, MAKING SURE TOOL IS CENTERED AND BALANCED UNDER ASSEMBLY SO CABINETS ARE NOT LEANING TO ONE SIDE.
Lift one end and roll tool
under row of cabinets... 		MOVE THE ASSEMBLED CABINETS IN FRONT OF THE WALL WITH THE TOOL UNDERNEATH, WHERE THEY ARE TO BE INSTALLED. THE ASSEMBLY SHOULD BE APPROXIMATELY ONE INCH AWAY FROM THE WALL PRIOR TO RAISING THEM INTO POSITION
...balance and
position cabinets... 		CAREFULLY RAISE THE ASSEMBLED CABINETS TO THE PROPER HEIGHT. MAKE SURE THE CABINETS ARE BALANCED ON THE TOOL AND FASTEN THEM TO THE WALL.
...raise cabinets to
proper height and mount!
...or even after Lower Cabinets are installed!
USE THE SAME METHOD FOR PLACING THE CABINETS ON THE TOOL BUT POSITION THE CABINETS IN FRONT OF THE INSTALLED BASE CABINETS INSTEAD OF IN FRONT OF THE WALL
Load uppers, position in front
of base cabinets and raise... 		PLACE TEMPORARY CABINET SUPPORTS ON TOP OF COUNTERTOP. RAISE CABINETS TO SAME HEIGHT AS SUPPORTS. CAREFULLY LIFT AND SLIDE ONE END OF CABINET ASSEMBLY ONTO ONE SUPPORT. DO THE SAME ON THE OTHER SIDE AND REMOVE TOOL.
...slide cabinets onto temporary
supports, one end at a time... 		LIFT THE COUNTERTOP CONFIGURED TOOL ONTO THE COUNTERTOP. RAISE ASSEMBLY TO PROPER HEIGHT (MAKE SURE CABINETS ARE BALANCED ON TOOL) FASTEN CABINETS TO WALL.
...raise cabinets to
proper height and mount!
